BUILDING OVERVIEW

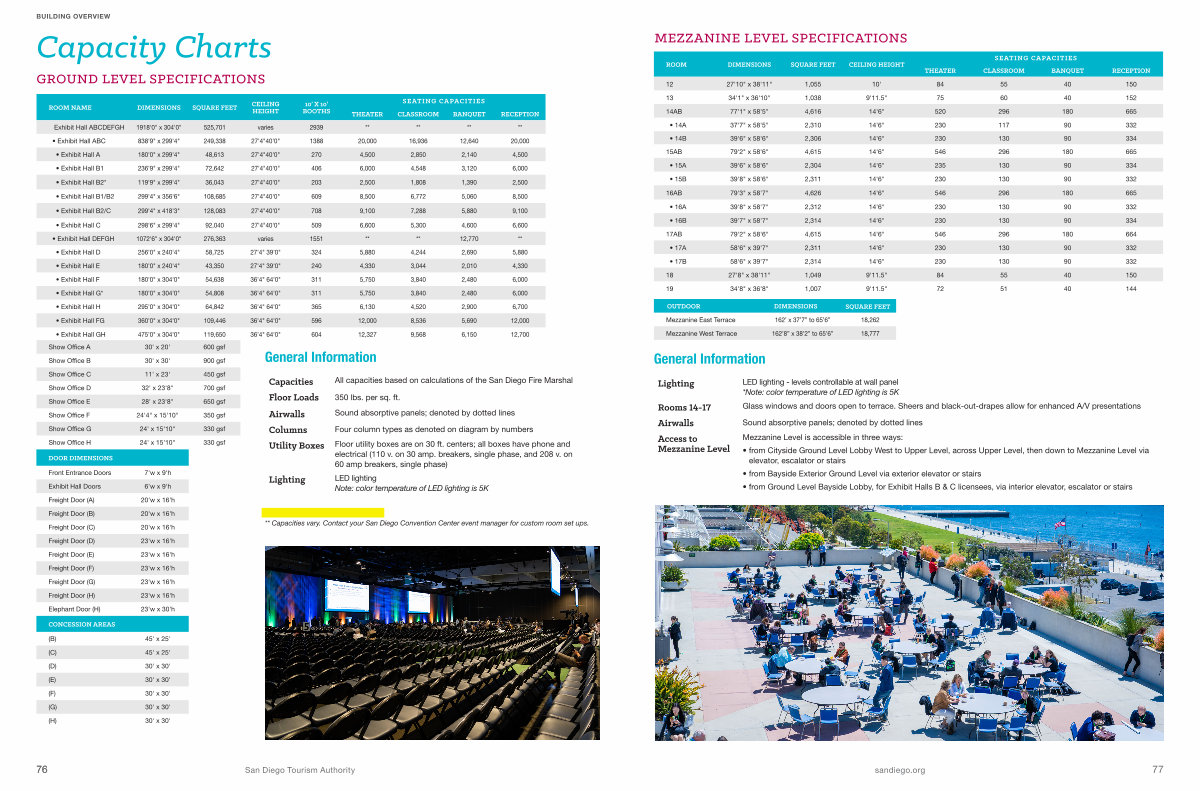

Capacity Charts
GROUND LEVEL SPECIFICATIONS
ROOM NAME DIMENSIONS SQUARE FEET
CEILING HEIGHT
10’ X 10’ BOOTHS
SEATING CAPACITIES
THEATER CLASSROOM BANQUET RECEPTION Exhibit Hall ABCDEFGH 1918 ' 0 " x 304 ' 0 " 525,701 varies 2939 ** ** ** **
• Exhibit Hall ABC 838 ' 9 " x 299 ' 4 " 249,338 27 ' 4 " 40 ' 0 " 1388 20,000 16,936 12,640 20,000
• Exhibit Hall A 180 ' 0 " x 299 ' 4 " 48,613 27 ' 4 " 40 ' 0 " 270 4,500 2,850 2,140 4,500
• Exhibit Hall B1 236 ' 9 " x 299 ' 4 " 72,642 27 ' 4 " 40 ' 0 " 406 6,000 4,548 3,120 6,000
• Exhibit Hall B2 * 119 ' 9 " x 299 ' 4 " 36,043 27 ' 4 " 40 ' 0 " 203 2,500 1,808 1,390 2,500
• Exhibit Hall B1 / B2 299 ' 4 " x 356 ' 6 " 108,685 27 ' 4 " 40 ' 0 " 609 8,500 6,772 5,060 8,500
• Exhibit Hall B2 / C 299 ' 4 " x 418 ' 3 " 128,083 27 ' 4 " 40 ' 0 " 708 9,100 7,288 5,880 9,100
• Exhibit Hall C 298 ' 6 " x 299 ' 4 " 92,040 27 ' 4 " 40 ' 0 " 509 6,600 5,300 4,600 6,600
• Exhibit Hall DEFGH 1072 ' 6 " x 304 ' 0 " 276,363 varies 1551 ** ** 12,770 **
• Exhibit Hall D 256 ' 0 " x 240 ' 4 " 58,725 27 ' 4 " 39 ' 0 " 324 5,880 4,244 2,690 5,880
• Exhibit Hall E 180 ' 0 " x 240 ' 4 " 43,350 27 ' 4 " 39 ' 0 " 240 4,330 3,044 2,010 4,330
• Exhibit Hall F 180 ' 0 " x 304 ' 0 " 54,638 36 ' 4 " 64 ' 0 " 311 5,750 3,840 2,480 6,000
• Exhibit Hall G * 180 ' 0 " x 304 ' 0 " 54,808 36 ' 4 " 64 ' 0 " 311 5,750 3,840 2,480 6,000
• Exhibit Hall H 295 ' 0 " x 304 ' 0 " 64,842 36 ' 4 " 64 ' 0 " 365 6,130 4,520 2,900 6,700
• Exhibit Hall FG 360 ' 0 " x 304 ' 0 " 109,446 36 ' 4 " 64 ' 0 " 596 12,000 8,536 5,690 12,000
• Exhibit Hall GH 475 ' 0 " x 304 ' 0 " 119,650 36 ' 4 " 64 ' 0 " 604 12,327 9,568 6,150 12,700
Show Office A |
30 ' x 20 ' |
600 gsf |
Show Office B |
30 ' x 30 ' |
900 gsf |
Show Office C |
11 ' x 23 ' |
450 gsf |
Show Office D |
32 ' x 23 ' 8 " |
700 gsf |
Show Office E |
28 ' x 23 ' 8 " |
650 gsf |
Show Office F |
24 ' 4 " x 15 ' 10 " |
350 gsf |
Show Office G |
24 ' x 15 ' 10 " |
330 gsf |
Show Office H |
24 ' x 15 ' 10 " |
330 gsf |
DOOR DIMENSIONS |
|
|
Front Entrance Doors |
7 ' w x 9 ' h |
|
Exhibit Hall Doors |
6 ' w x 9 ' h |
|
Freight Door( A) |
20 ' w x 16 ' h |
|
Freight Door( B) |
20 ' w x 16 ' h |
|
Freight Door( C) |
20 ' w x 16 ' h |
|
General Information
Capacities Floor Loads 350 lbs. per sq. ft. Airwalls Columns Utility Boxes
Lighting
All capacities based on calculations of the San Diego Fire Marshal
Sound absorptive panels; denoted by dotted lines Four column types as denoted on diagram by numbers
Floor utility boxes are on 30 ft. centers; all boxes have phone and electrical( 110 v. on 30 amp. breakers, single phase, and 208 v. on 60 amp breakers, single phase)
LED lighting Note: color temperature of LED lighting is 5K
* Halls B-2 and G do not stand alone. ** Capacities vary. Contact your San Diego Convention Center event manager for custom room set ups.
Freight Door( D) Freight Door( E) Freight Door( F) Freight Door( G) Freight Door( H) Elephant Door( H)
23 ' w x 16 ' h 23 ' w x 16 ' h 23 ' w x 16 ' h 23 ' w x 16 ' h 23 ' w x 16 ' h 23 ' w x 30 ' h
CONCESSION AREAS |
( B) |
45 ' x 25 ' |
( C) |
45 ' x 25 ' |
( D) |
30 ' x 30 ' |
( E) |
30 ' x 30 ' |
( F) |
30 ' x 30 ' |
( G) |
30 ' x 30 ' |
( H) |
30 ' x 30 ' |
